7900 XTX in a Mini-ITX Case

3D Print

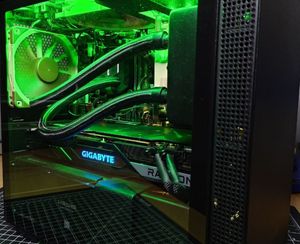

A computer case with a window on the side lit with LED lights displaying the graphics card

I like the portability of mini-ITX case and the NZXT H210 has room for a full-size power supply and graphics card but is still reasonably luggable. However I ran into trouble when I brought home a Gigabyte 7900 XTX, the mounting bracket provided only works in a fullsize ATX case.

To solve this I made a custom 3D-printed support bracket in FreeCAD, it mounts the card to the front of the case with some heat-set inserts and M3 hardware.

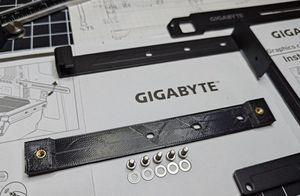

A rectangular 3D printed bracket with three holes to mount to the graphics card and two threaded heat-set inserts on each side to mount to the front of the case

Files

Parts

Print with 100% infill

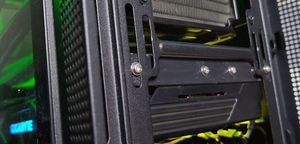

Case with front panel removed showing the custom bracket bolted to the front of the card and the case
